Completely get rid of neighborhood noise disturbances
2
Save a significant amount of money on air conditioning and heating costs
3
Safety guarantee
4
The usable area is 5% to 8% larger
1
Completely get rid of neighborhood noise disturbances
2
Save a significant amount of money on air conditioning and heating costs
3
Safety guarantee
4
The usable area is 5% to 8% larger
Implementation process
Step1
Project initiation
Step2
Architectural design
Step3
Component production
Step4
Transportation
Step5
Main structure construction
Step6
Interior decoration
Step7
Delivery of operation and maintenance services

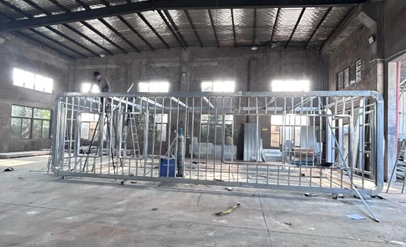

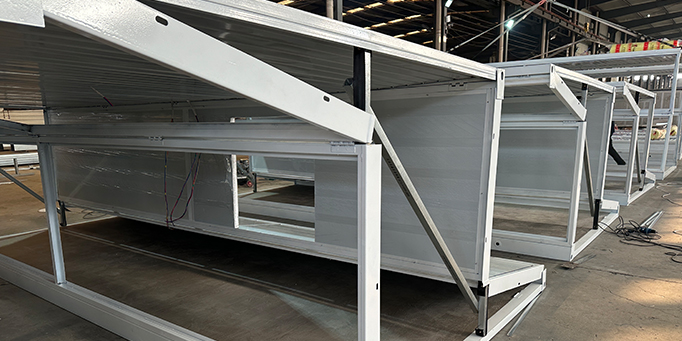

Structural skeleton

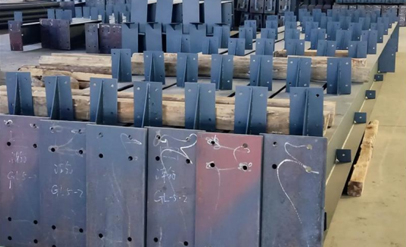

1.Box body steel • Material Grade: High-strength weathering structural steel (Q345B and above) • Thickness Standard: - Side panel: 1.6-2.0mm (Industry standard: 1.2-1.4mm) - Top plate: 1.4-1.8mm (snow load resistance ≥1.5kN/m²) - Bottom beam: 6-8mm special channel steel (load-bearing core) • Core Technologies: - Corten weathering steel optional: naturally forms a protective rust layer, requiring no maintenance - Galvanized layer: ≥120μm hot-dip galvanization, salt spray test >2000 hours
2. Structural Connection • Seismic-resistant patent joint: allows ±150mm displacement without failure • Multi-layer stacked dedicated connectors: Pre-installed in the factory, bolted in the field • Welding process: Full penetration welds, 100% ultrasonic flaw detection
Enclosure barrier
1. Six layer insulation system (sectional view display) Layer 1: Exterior layer (metal sheet/wood plastic board/custom finish) Layer 2: Waterproof breathable membrane (breathable waterproof) Layer 3: Main insulation layer: Plan A: 100mm polyurethane continuous spraying (λ=0.022W/m · K) Plan B: 150mm rock wool board (Class A fireproof, λ=0.036W/m·K） Plan C: VIP vacuum insulation board (ultra-thin and efficient, λ=0.008W/m · K) Layer 4: Moisture proof and vapor barrier layer (humidity regulation) Layer 5: Structural lining board (12mmOSB/calcium silicate board) Layer 6: Interior Surface Layer (Multiple Options)
2. Climate adaptation plan Cold zone version: insulation layer thickened by 50%+airtight layer+thermal bridge blocking design Tropical version: Reflective insulation coating+ventilated air layer+sunshade system High humidity version: double-layer moisture-proof+active dehumidification system
Epidermal system
1. Facade Options Library Industrial Aesthetics Department: Original Steel Texture, Rust Art Treatment, Perforated Plate Design Natural fusion system: anti-corrosion wood coating, bamboo and wood grille, vertical greening system Modern minimalist style: metal baking paint (200 RAL colors to choose from), glass curtain wall Cultural Features Series: Customized Pattern Printing, Local Material Application

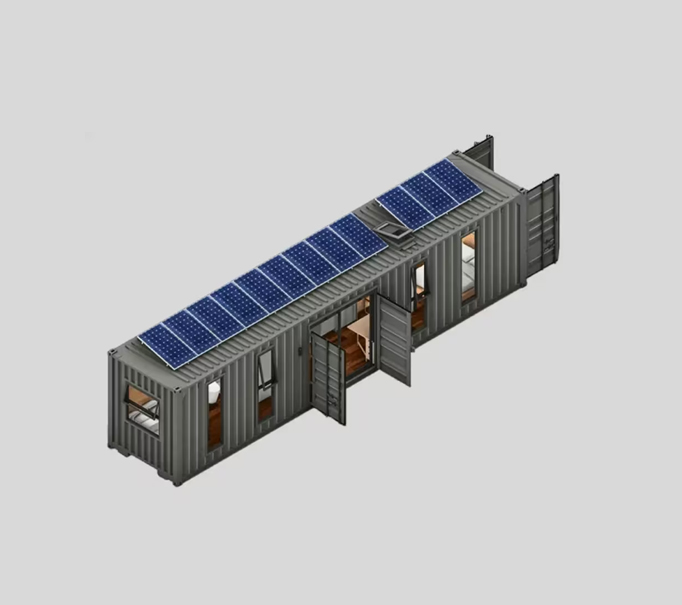

2. Roof system Flat roof: polymer waterproofing membrane, can be designed with people on board Sloping roof: Integrated metal tiles/solar tiles Green Roof: Lightweight Planting Roof System Combination roof: a three in one system of solar panels, insulation, and waterproofing
3. Door and window system Performance standard: U value ≤ 1.2W/m ² · K (European Passive House Standard) Configuration options: -Broken bridge aluminum alloy window (three glass two chamber filled with argon gas) -Composite material energy-saving window -Intelligent dimming glass (one click atomization) -Anti theft and bulletproof upgrade options
2. Environmental and health certification Formaldehyde emission: ≤ 0.03mg/m ³ (far below the national standard of 0.08mg/m ³) VOC control: All coatings are water-based/UV cured Allergen friendly: Antibacterial coating, inhibits mold growth
integrated system
1. Electrical and Intelligent Pre wiring system: All pipelines are pre installed in the factory and only need to be connected on-site Separation of strong and weak electricity: avoid interference, safety regulations Smart Home Interface: Reserved KNX/BACnet/Wireless Protocol Interface Photovoltaic Integration: BIPV Building Photovoltaic Integration Design
2. Water supply and drainage system PPR pipeline: hot melt connection, 50 years service life Same level drainage: noise reduction, easy maintenance Antifreeze Design: Optional Heating Antifreeze System for Cold Regions Water saving integration: optional grey water recovery system
3. Ventilation and air conditioning Passive ventilation: natural ventilation design utilizing thermal pressure difference Active system: Full heat exchange fresh air+frequency conversion multi split reserved Extreme climate: optional explosion-proof air conditioning/industrial dehumidifier
